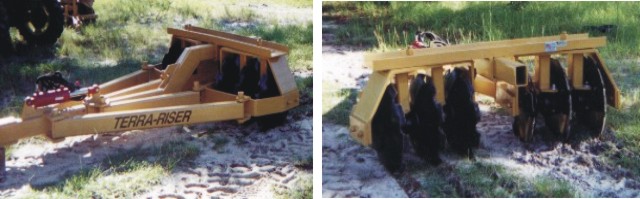

Terra-Riser EAM Series Harrows
Fireline Harrow
12" Disc Spacing: 2 1/8" round axle equipped with Timken Bearings
Angled frame protects from obstaclesSpecifications:
Model Number of Discs Cutting Width (ft) Weight (lbs) EAM 628 (6) - 28"x3/8" notched discs 7' 2" (bedding)
6' (bush & bog)3,000 Standard Equipment:
28" diameter, 3/8" thick, cutout disk blades Heat Treated Alloy Steel Axles Hydraulic offset, includes hydraulic cylinder Optional Equipment:
Notched disc dimensions:
30" diameter
3/8" thicknessScrapers
What makes our harrows better?
We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.
Turns soil toward center of lane in bedding position or outward toward the edges of the lane in the bush and bog position.
950 SE 21st Ave - Gainesville, FL 32609 (352) 376-4888 Toll free: (800) 330-3402 [Contact us online] |
