The EBH features the Heavy Duty Timken Roller Bearing
Making farming easier Fireline & Forestry Equipment

Terra-Riser Series EBH Harrows

Hinge Offset Harrow
11" Disc Spacing: 1 5/8" (41.3 mm) axle - Weight per disc: 240 lbs average

Specifications:

Model Number of Discs Cutting Width (ft) HP Motor Req'd* Weight (lbs)
EBH 16
EBH 20
EBH 24
EBH 28
EBH 32
EBH 36
EBH 40
EBH 48
EBH 54
 		16
20
24
28
32
36
40
48
54
 		7'5 "
9' 2"
11'
13' 2"
14'
15' 6"
17' 6"
21'
24'
 		100-110
115-125
130-140
145-155
160-175
175-190
190-205
205-220
220-235
 		3,366
3,997
4,500
6,456
7,462
8,595
9,392
10,761
12,850

  • Heavy duty structural steel mainframe
  • 0 to 45 degree hydraulic angle control
  • Front - Rear Stabilizers
  • 1 5/8" high strength round axles
  • Steel spacers and scrapers
  • Heavy duty US made Timken roller bearing assemblies


    •  Model ECH with 9 1/2" disc spacing: 1 5/8" (41.3) axle: Weight per disc 165 lbs average also available.
    * Horsepower may vary according to soil conditions or difficult terrain.

    Applications:

  • Soil preparation for planting
  • Pulverization
  • Aeration

    • Standard Equipment:

  • Hydraulic angle control
  • Steel disc scrapers
  • ECH - 24" diameter, 1/4" thick notched discs
  • EBH - 26" diameter, 5/16" thick notched discs

    • Optional Equipment:

  • EBH - 28" x 5/16" notched discs
  • ECH - 26" x 1/4" notched discs
  • Heavy duty wear plates

    • EBH

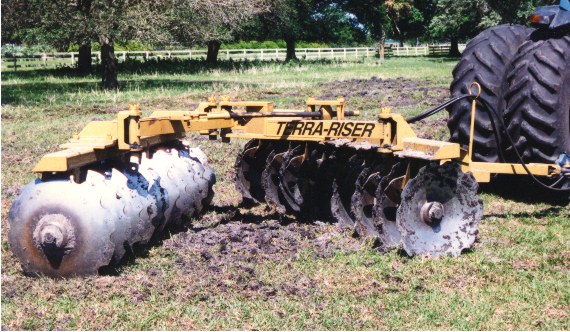

    EAH 1630 in action

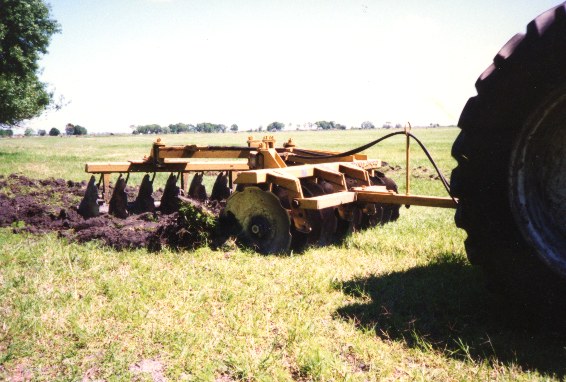

    EAH 1630 in action

    EAH 1630 in action



    What makes our harrows better?

    We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.

    		Timken Bearing
