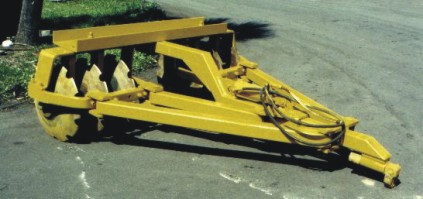

Terra-Riser EBM Series Harrows
Fireline Harrow
11" Disc Spacing: 1 5/8" round axle equipped with Timken Bearings
Angled frame protects from obstaclesSpecifications:
Model Number of Discs Cutting Width (ft) Weight (lbs) EBM 626 (6) - 26"x5/16" notched discs 7' (bedding)
6' (bush & bog)2,400 Standard Equipment:
26" diameter, 5/16" thick, cutout disk blades Heat Treated Alloy Steel Axles Hydraulic offset, includes hydraulic cylinder Scrapers Optional Equipment:
Notched disc dimensions:
28" diameter
5/16" thicknessBearing wear plates
What makes our harrows better?
We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.
Turns soil toward center of lane in bedding position or outward toward the edges of the lane in the bush and bog position.
