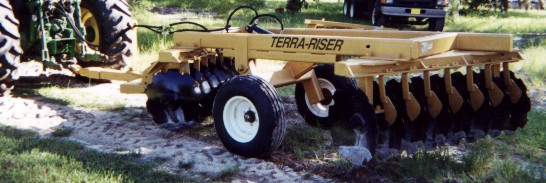

Terra-Riser Series EBW Harrows

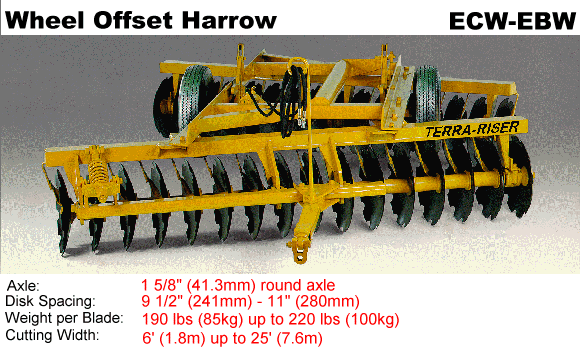

Wheel Offset Harrow
11" Disc Spacing: 1 5/8" (41.3 mm) axle - Weight per disc: 220 lbs averageSpecifications:
Model Number of Discs Cutting Width (ft) HP Motor Req'd* Tires
Number x SizeWeight (lbs) EBW 16-26
EBW 20-26
EBW 24-26
EBW 28-26
EBW 32-26
EBW 36-26
EBW 40-26
16
20
24
28
32
36
40
7' 4"
9'
11' 2"
12' 8"
15'
16' 6"
19'
105-115
120-130
135-145
150-160
165-180
200-220
240-260
2 x 7.50-16
2 x 7.50-16
2 x 7.50-16
2 x 7.50-16
4 x 7.50-16
4 x 7.50-16
4 x 7.50-16
3,496
4,006
5,205
5,986
7,601
8,158
8,976
Model ECW with 9 1/2" disc spacing: 1 5/8" (41.3) axle: Weight per disc 190 lbs average also available.Heavy duty structural steel mainframe 1 5/8" high strength round axles Heavy duty US made Timken roller bearing assemblies
* Horsepower may vary according to soil conditions or difficult terrain.Applications:
Soil preparation for planting Pulverization Aeration Standard Equipment:
Hydraulic wheel lift and tongue leveling Steel disc scrapers Notched disc dimensions:
26" (660 mm) diameter
1/4" (6.35 mm) thickness
What makes our harrows better?
We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.
