The EH feature the Heavy Duty Timken Roller Bearing
Making farming easier Fireline & Forestry Equipment

Terra-Riser Series EH Harrows

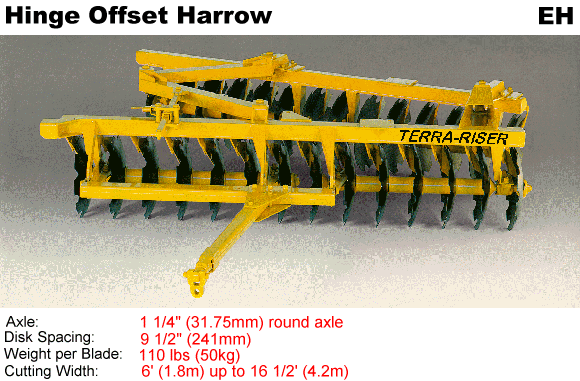

Hinge Offset Harrow
9 1/2" Disc Spacing: 1 1/4" (31.75 mm) axle - Weight per disc: 110 lbs average

Specifications:

Model Number of Discs Cutting Width (ft) HP Motor Req'd* Weight (lbs)
EH 16-24
EH 18-24
EH 20-24
EH 24-24
EH 28-24
EH 32-24
EH 36-24
16
18
20
24
28
32
36
6' 6"
7' 4"
8'
9' 6"
11'
12' 8"
14'
55-65
65-70
75-85
90-100
100-110
120-130
140-150
1,970
2,066
2,169
2,477
2,858
3,208
3,727

  • Heavy duty structural steel mainframe
  • 0 to 45 degree hydraulic angle control
  • Front - Rear Stabilizers
  • 1 1/4" high strength round axles
  • Steel spacers and scrapers
  • Heavy duty US made Timken roller bearing assemblies


  • * Horsepower may vary according to soil conditions or difficult terrain.

    Applications:

  • Soil preparation for planting
  • Pulverization
  • Aeration
  • Standard Equipment:

  • Hydraulic angle control
  • Steel disc scrapers
  • 24" (610 mm) diameter, 1/4" (6.5 mm) thick notched discs
  • Optional Equipment:

  • 22" x 1/4" notched discs


  • EH



    What makes our harrows better?

    We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.

    Timken Bearing
