The ERH feature the Heavy Duty Timken Roller Bearing
Making farming easier Fireline & Forestry Equipment

Terra-Riser Series ERH Harrows

Heavy Duty Hinge Offset Harrow
14" (356 mm) Disc Spacing: 2 1/2" (63.5 mm) axle - Weight per disc: 515 lbs average

Specifications:

Model Number of Discs Cutting Width (ft) HP Motor Req'd* Weight (lbs)
ERH 14-32
ERH 16-32
ERH 20-32
ERH 24-32
ERH 28-32
14
16
20
24
28
8'
9' 4"
11' 8"
14'
16' 4"
220-240
260-300
320-340
340-375
375-420
7,876
9,020
9,900
12,320
14,520
Click here for information on the ERH 28-36 series harrow


  • Heavy duty structural steel mainframe
  • Mechanical or hydraulic disc angle adjustment
  • High clearance to prevent clogging
  • 2 1/2" high strength round axles
  • Heavy duty US made Timken roller bearing assemblies


  • * Horsepower may vary according to soil conditions or difficult terrain.

    Applications:

  • Land preparation in heavy soils and thick vegetation
  • Construction and road building
  • Tilling new ground and recently deforested land
  • Deep tillage
  • Standard Equipment:

  • Hydraulic angle adjustment
  • Steel disc scrapers
  • 32" diameter, 1/2 thick notched discs
  • Optional Equipment:

  • Heavy duty wear plates
  • 30" x 1/2" notched discs

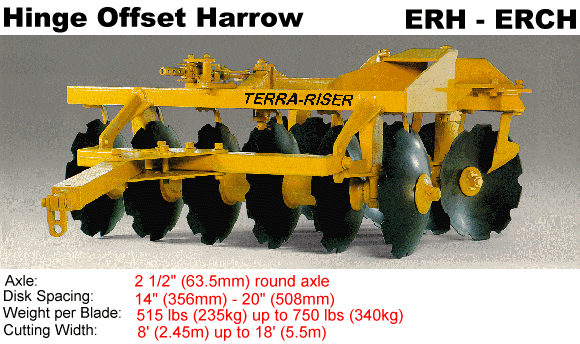

  • ERH - ERCH

    What makes our harrows better?

    We use the heavy duty Timken Roller Bearing in all our harrows - this bearing provides reliability as well as easy serviceability for the life of your Terra-Riser harrow.

    Timken Bearing
